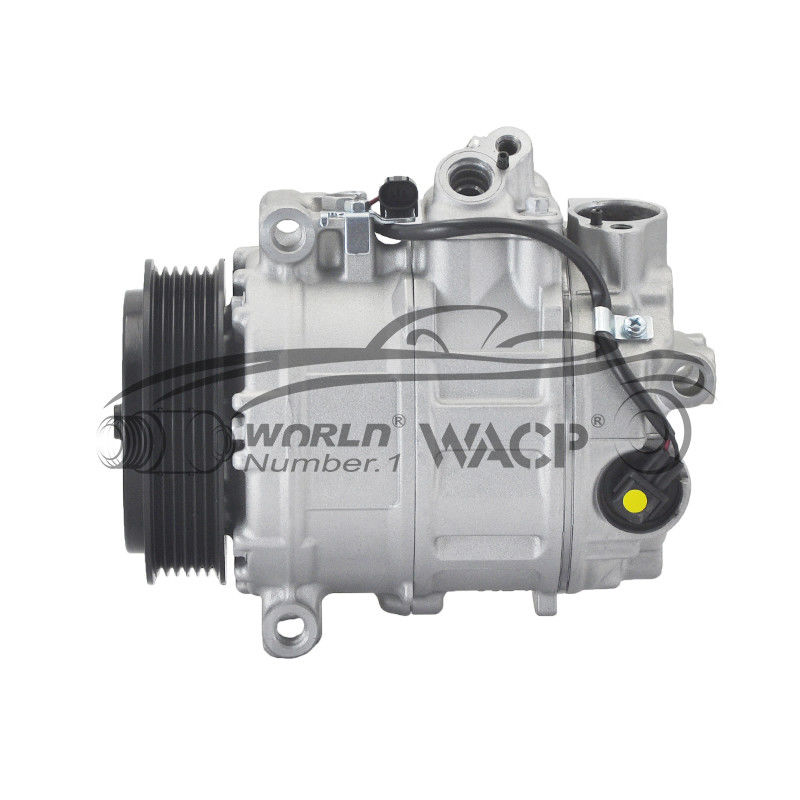

AC Comrpessor Vehicle 7SEU17C For Benz Compressor Systrm Parts WXMB115

Product Description

AC Comrpessor Vehicle 7SEU17C For Benz Compressor Systrm Parts WXMB115



Parameter:

Warranty:

We provide one year quality warrantee. Any question of the product, please first contact us
This warranty is subject to the following conditions and exclusions:

1.The shipping costs for return back to our company is in buyer side

2. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.

3. Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number.
As soon as we receive the goods, we will repair or change new part .

4. If the quality or damage caused by improper installation or use, not within the scope of warranty


Automobile air conditioning compressor composition


1. Compressor Housing: The compressor housing encloses all the internal components of the air conditioning compressor and provides support and protection.

2. Compressor Shaft Seal: The shaft seal prevents refrigerant and oil from leaking out of the compressor.

3. Swash Plate: The swash plate is connected to the compressor shaft and helps to regulate the movement of the pistons inside the compressor.

4. Piston Assembly: The piston assembly moves up and down within the cylinders of the compressor to compress the refrigerant gas.

5. Swash Plate Bearings: These bearings support the swash plate and allow it to rotate smoothly.

6. Cylinder Head: The cylinder head contains the reed valves and serves as the top cover of the compressor cylinders.

7. Reed Valves: Reed valves are located in the cylinder head and control the flow of refrigerant gas into and out of the compressor cylinders.

8. Suction and Discharge Ports: These ports enable the entry and exit of refrigerant gas into and out of the compressor cylinders.

9. Clutch Assembly: The clutch assembly engages and disengages the compressor from the engine, allowing the compressor to turn on and off as needed.

10. Electronic Control Module (ECM): The ECM monitors and controls the operation of the air conditioning compressor, ensuring optimal performance and efficiency.


The role of compressor

The compressor is an essential component of the air conditioning system in a vehicle. Its primary function is to circulate and compress the refrigerant gas, which is responsible for cooling and dehumidifying the air in the cabin.

The process starts with the compressor drawing in low-pressure refrigerant gas from the evaporator and then compressing it into a high-pressure, high-temperature gas. This compressed gas is then sent to the condenser, where it releases heat and transforms into a high-pressure liquid. After leaving the condenser, the pressurized liquid refrigerant flows through the receiver drier or accumulator, which removes any moisture or debris from the refrigerant.

From there, the refrigerant passes through the expansion valve or orifice tube, which regulates the flow of the refrigerant into the evaporator. Inside the evaporator, the high-pressure liquid refrigerant rapidly expands and evaporates, absorbing heat from the air passing over the evaporator's fins. This cools the air and reduces its humidity. The cooled air is then blown into the cabin through the vents, providing a comfortable and refreshing environment for passengers.

Overall, the compressor plays a crucial role in the refrigeration cycle of the air conditioning system, ensuring that the refrigerant is properly circulated, pressurized, and transformed to achieve effective cooling inside the vehicle.
