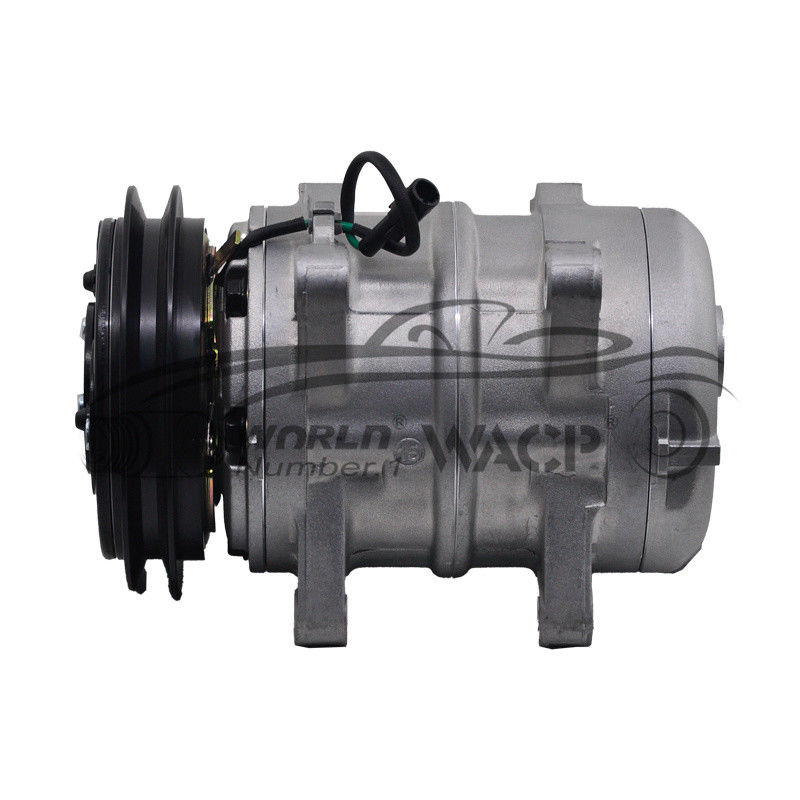

DKS17D Truck AC Compressor For Isuzu Pickup 24V WXIZ014

Product Description

DKS17D Truck AC Compressor For Isuzu Pickup 24V WXIZ014

Parameter:

Role of compressor

The compressor is an essential component of the air conditioning system in a vehicle. Its primary function is to circulate and compress the refrigerant gas, which is responsible for cooling and dehumidifying the air in the cabin.

The process starts with the compressor drawing in low-pressure refrigerant gas from the evaporator and then compressing it into a high-pressure, high-temperature gas.

This compressed gas is then sent to the condenser, where it releases heat and transforms into a high-pressure liquid. After leaving the condenser, the pressurized liquid refrigerant flows through the receiver drier or accumulator, which removes any moisture or debris from the refrigerant. From there, the refrigerant passes through the expansion valve or orifice tube, which regulates the flow of the refrigerant into the evaporator. Inside the evaporator, the high-pressure liquid refrigerant rapidly expands and evaporates, absorbing heat from the air passing over the evaporator's fins.

This cools the air and reduces its humidity. The cooled air is then blown into the cabin through the vents, providing a comfortable and refreshing environment for passengers. Overall, the compressor plays a crucial role in the refrigeration cycle of the air conditioning system, ensuring that the refrigerant is properly circulated, pressurized, and transformed to achieve effective cooling inside the vehicle.

WNRLN Packing

Piston-Type Compressors

The automotive air conditioning compressor is a crucial component of the AC system, responsible for compressing and circulating the refrigerant. It consists of several key parts that work together to achieve effective cooling.

1. Compressor Housing: The outer shell of the compressor, designed to enclose and protect the internal components.

2. Compressor Pulley: A pulley attached to the front of the compressor, connected to the engine via a belt. It transfers power from the engine to drive the compressor.

3. Clutch Assembly: The clutch allows the compressor to engage and disengage as required. It consists of an electromagnetic coil, friction plates, and a hub.

4. Swash Plate: This component converts the rotational motion of the compressor shaft into a reciprocating or up-and-down motion. It is responsible for compressing the refrigerant.

5. Piston: Linked to the swash plate, the piston moves up and down within the compressor cylinder to compress the refrigerant gas.

6. Reed Valves: These one-way valves control the flow of refrigerant into and out of the cylinder. They prevent backflow and ensure efficient compression.

7. Oil Separator: Located within the compressor housing, it separates the refrigerant oil from the refrigerant gas before it leaves the compressor.

8. Shaft Seal: This seal prevents refrigerant from leaking out and contaminants from entering the compressor. It ensures the integrity of the system.

9. Control Valve: Some compressors have a control valve that regulates the flow of refrigerant based on the cooling demands of the vehicle.

10. Mounting Brackets: These brackets secure the compressor to the engine or chassis, keeping it stable and in the correct position.

Each of these components plays a crucial role in the operation of the automotive air conditioning compressor. Their proper functioning ensures efficient cooling and overall performance of the AC system in vehicles.
