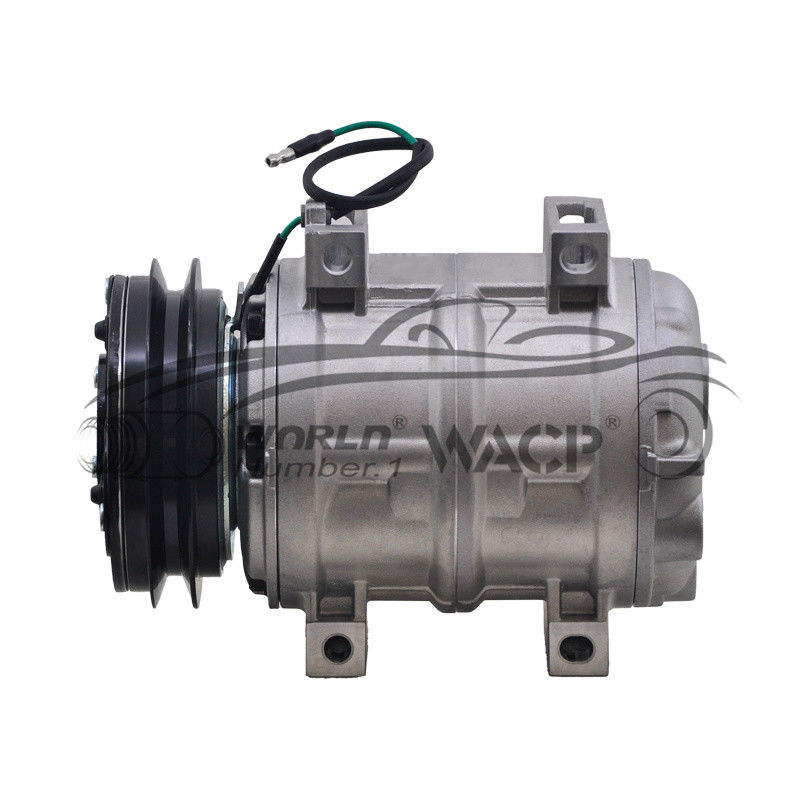

DKS15CH Vehicle AC Compressor 5062117800 24B422723 For Isuzu Truch 24V WXIZ059

Product Description

DKS15CH Vehicle AC Compressor 5062117800 24B422723 For Isuzu Truch 24V WXIZ059

The automobile air conditioning compressor is the core component of the automobile air conditioning system and plays a key role in driving the refrigeration cycle. It achieves rapid cooling of the air in the car by compressing low-pressure cold gas into high-pressure and high-temperature gas. A high-quality compressor provides efficient refrigeration capacity, which can reduce the temperature inside the car in a short time and provide a comfortable driving experience. At the same time, it must have the characteristics of low energy consumption, low noise and reliability to ensure the long-term stable operation of the air conditioning system. The performance of the automobile air conditioning compressor directly affects the working effect of the entire air conditioning system. Choosing a high-performance and reliable compressor will bring a more comfortable driving experience to the driver.

Parameter:

Piston-Type Compressors

The automotive air conditioning compressor is a crucial component of the AC system, responsible for compressing and circulating the refrigerant. It consists of several key parts that work together to achieve effective cooling.

1. Compressor Housing: The outer shell of the compressor, designed to enclose and protect the internal components.

2. Compressor Pulley: A pulley attached to the front of the compressor, connected to the engine via a belt. It transfers power from the engine to drive the compressor.

3. Clutch Assembly: The clutch allows the compressor to engage and disengage as required. It consists of an electromagnetic coil, friction plates, and a hub.

4. Swash Plate: This component converts the rotational motion of the compressor shaft into a reciprocating or up-and-down motion. It is responsible for compressing the refrigerant.

5. Piston: Linked to the swash plate, the piston moves up and down within the compressor cylinder to compress the refrigerant gas.

6. Reed Valves: These one-way valves control the flow of refrigerant into and out of the cylinder. They prevent backflow and ensure efficient compression.

7. Oil Separator: Located within the compressor housing, it separates the refrigerant oil from the refrigerant gas before it leaves the compressor.

8. Shaft Seal: This seal prevents refrigerant from leaking out and contaminants from entering the compressor. It ensures the integrity of the system.

9. Control Valve: Some compressors have a control valve that regulates the flow of refrigerant based on the cooling demands of the vehicle.

10. Mounting Brackets: These brackets secure the compressor to the engine or chassis, keeping it stable and in the correct position.

Each of these components plays a crucial role in the operation of the automotive air conditioning compressor. Their proper functioning ensures efficient cooling and overall performance of the AC system in vehicles.
