HELPING CHINA'S AUTO PARTS MARKET AND ACHIEVING WORLD NO.1
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | WNRLN |
| Model Number: | WXBM011 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Neutral packing and our own brand packing or customized packing according to your requirement. |
| Delivery Time: | 30 days |
| Payment Terms: | Western Union, L/C, T/T, MoneyGram, PayPal |
| Supply Ability: | 5000pcs per month |
| Car Make: | For BMW3/5/7 E38/E39/E46 2.8/3.5/4.4 | Voltage: | 12V |
|---|---|---|---|
| Grooves: | 5PK | Compressor Type: | 7SBU16C |
| OEM No.: | 64526910458/64526910459/64526904014 | Year: | 1998-2007 |
| High Light: | automotive air conditioning compressor,auto aircon compressor |
||

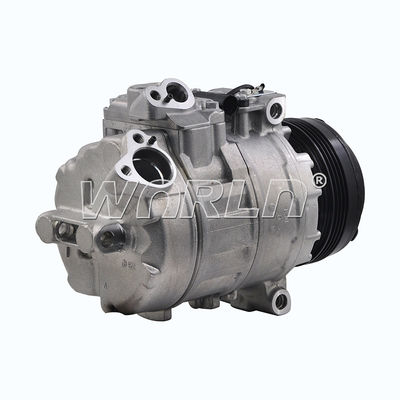

1998-2007 Automotive Ac Compressor For BMW3/5/7 E38/E39/E46 2.8/3.5/4.4 7SBU16C 5PK
Parameter :
| Model Number | WXBM011 |
| Car Model | For BMW3/5/7 E38/E39/E46 2.8/3.5/4.4 |
| Type |
AUTO AC COMPRESSOR |
| Year Model | 1998-2007 |
| OE No. |
89034/DCP05016/64526910458/64526910459/64526904014/64526904015 8FK351176501/64526910460/64526911342/64526914371/64528377244 64528381233/6904014/6904015/6904018/6910458/6910459/6910460 6911340/6911341/6911342/6914371/6914370/64526904018/6914371 64528363485/64526904014/64526904015/64526904018/6452690458 64526910459/64526910460/64526911340/64526911341/64526911342 64526914370/64526914371/64528362414/64528377241/64528377244 64528379924/64528377744/8377744/64528381233/64528385919 645228385921/64528385922/64528386451/8386451/8362414/8363485 8377241/8377244/8377744/8379924/8381233/8385919/8385921/8385922/8386451/4472208110/6829515/510010 |
| Note | If you need assistance to make sure that this part will fit your vehicle.Please send us the photo of your old product .The OEM and/or the year,make model and engine size of your vehicle so that we may confirm it for you.We also recommend using the compatibility chart in order to make sure that this product will fit your vehicle. |
Theory
Principles of Air Conditioning
(Expansion Valve System)
1)High pressure side
Low pressure R134a vapor entering the compressor is compressed to become high pressure/temperature R134a vapor. This is then circulated along with lubricant oil to the condenser. As the high pressure/temperature vapor travels through the condenser, heat is released to the cooler ambient air passing over the condenser tubes condensing the vapor into a liquid. This high pressure/temperature liquid then travels through the filter drier onto the expansion valve where a small variable orifice provides a restriction against which compressor pushes.
2) pressure side
Suction from the compressor pulls the high pressure/temperature liquid R134a through small variable orifice of the TX valve and into the low-pressure side of the A/C system.
The R134a is now under low pressure/temperature vapor where heat from the cabin being blown over the evaporator coil surface is absorbed into the colder low pressure refrigerant The R134a is then pulled through the evaporator and into the
compressor.
The A/C cycle begins again as the R134a vapor is compressed and discharged under pressure.
3)Heat transfer
R134a in the LOW-PRESSURE side is COLD and can absorb large quantities of heat from the air moving over the evaporator.
R134a in HIGH-PRESSURE side is HOT and the cooler ambient air moving over the condenser can absorb the heat from it.
Summary
- When the R134a pressure is low, the R134a temperature is low.
- When the R134a pressure is high, the R134a temperature is high.
