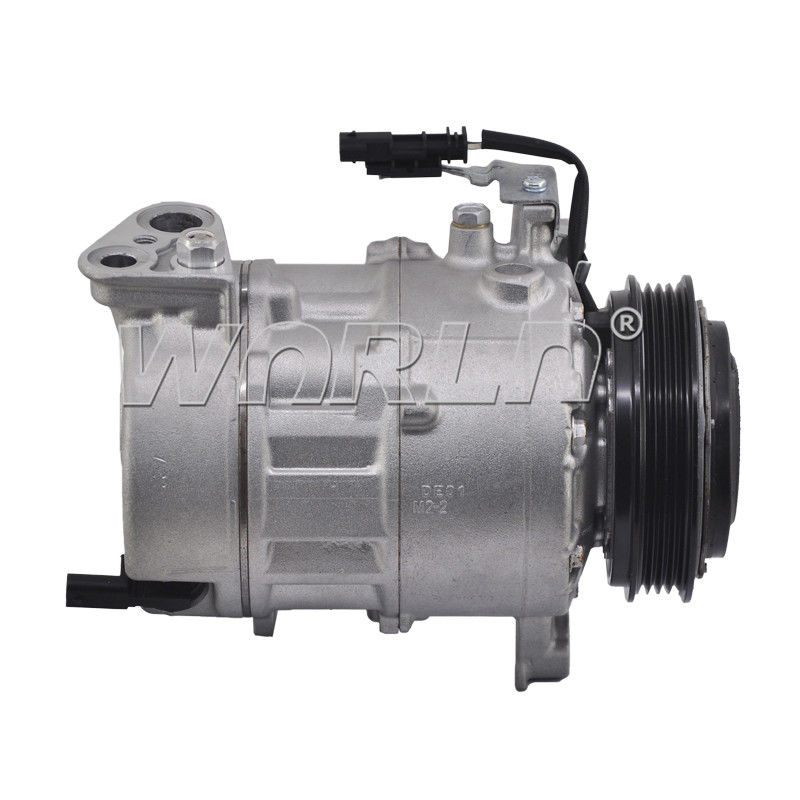

7SBH17C 4PK Automotive Compressor For Cadillac Escalade/Chevrolet 23232909/23496270/23215567

7SBH17C 4PK Automotive Compressor For Cadillac Escalade/Chevrolet 23232909/23496270/23215567

Parameter:

Theory

Principles of Air Conditioning

(Expansion Valve System)

1)High pressure side

Low pressure R134a vapor entering the compressor is compressed to become high pressure/temperature R134a vapor. This is then circulated along with lubricant oil to the condenser. As the high pressure/temperature vapor travels through the condenser, heat is released to the cooler ambient air passing over the condenser tubes condensing the vapor into a liquid. This high pressure/temperature liquid then travels through the filter drier onto the expansion valve where a small variable orifice provides a restriction against which compressor pushes.

2) pressure side

Suction from the compressor pulls the high pressure/temperature liquid R134a through small variable orifice of the TX valve and into the low-pressure side of the A/C system.

The R134a is now under low pressure/temperature vapor where heat from the cabin being blown over the evaporator coil surface is absorbed into the colder low pressure refrigerant The R134a is then pulled through the evaporator and into the

compressor.

The A/C cycle begins again as the R134a vapor is compressed and discharged under pressure.

3)Heat transfer

R134a in the LOW-PRESSURE side is COLD and can absorb large quantities of heat from the air moving over the evaporator.

R134a in HIGH-PRESSURE side is HOT and the cooler ambient air moving over the condenser can absorb the heat from it.

Summary

- When the R134a pressure is low, the R134a temperature is low.

- When the R134a pressure is high, the R134a temperature is high.

FAQ

Q1.What is your terms of payment?

T/T 30% as deposit, and 70% before delivery. We'll send you the photos of the products and packages before you pay the balance

Q2.What is your terms of delivery?

EXW,FOB ,CNF and so on

Q3.Can we buy one sample ?

Yes, if we have product in stock, but the customers need pay the sample cost and the shipping cost.

Q4.Do you test all your goods before delivery?

Yes,we will test them and send the picture to for your confirm (Products and packaging)

Q5.How do you make our business long-term and good relationship?

1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q6. What should we do if I don’t know if my product matches your goods ?

A:You can email us the descriptions and pictures of the products you need ,we will check whether it is the item you want.

Technical Information

What you need to know

If you’re replacing an A/C Compressor, you have to be prepared to replace additional components in the system depending on the reason why your own

compressor failed. The information provided below was made to help you save TIME and MONEY.

1.) Compressor locked/seized internally:

If your compressor seized internally it was due to insufficient refrigerant or oil in the system or the system was

blocked, leading to overheating of the compressor which caused a breakdown of internal parts.

Visible symptoms:

The oil in the compressor is black and/or has aluminum particles in it. The belt snapped or when the a/c is

turned on, the engine feels like it’s going to turn off.

What you should do:

1. Replace the A/C Compressor (make sure to add PAG Oil)

2. Replace the Receiver Drier/Accumulator

3. Replace the Expansion Valve/Orifice tube

4. Flushing the a/c lines, condenser and evaporator is REQUIRED (We professionally recommend to replace

the condenser on modern vehicles since the passage on the fins are so small that a flush will not remove all

contaminants).

5. Vacuum the system for 30 – 45 minutes. This will remove any moisture in the system.

6. Add the correct amount of refrigerant to the system.

7. Run vehicle on lowest fan setting for about 3 minutes to allow the compressor to cycle the refrigerant and oil.

The reason why it’s important to replace the additional parts listed is because if you add a

new compressor to acontaminated system, the compressor will cycle the contaminants and will eventually lock up again
