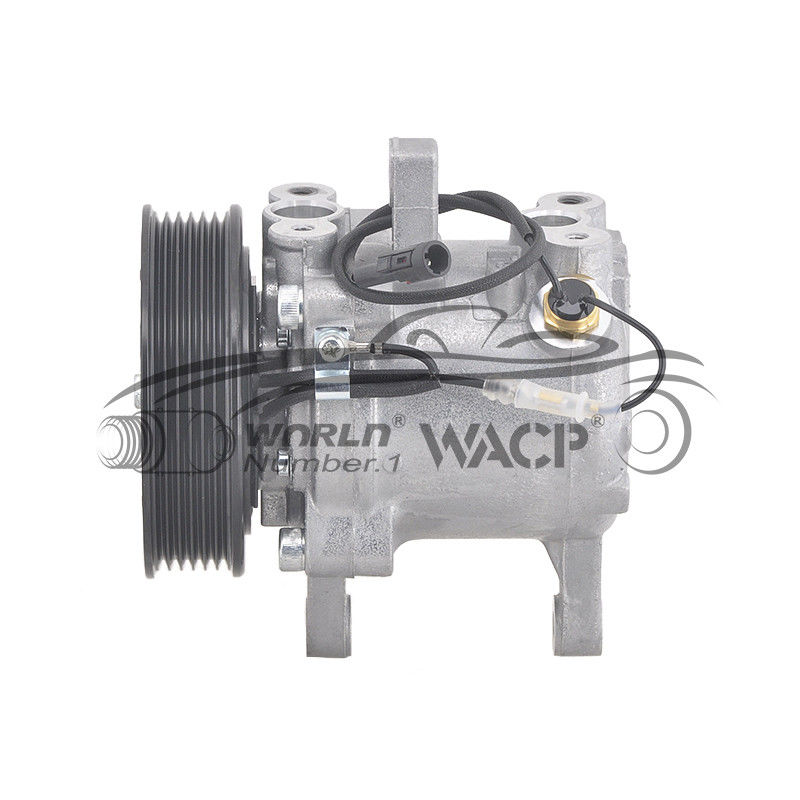

2012412AM 4472803050 3P90396110 12V Auto Parts AC Compressor For Kubota WXTK178

2012412AM 4472803050 3P90396110 12V Auto Parts AC Compressor For Kubota WXTK178

Parameter:

Pictures

Testing the functionality of  AC conditioning compressor

1. Visual Inspection

Check for Physical Damage: Inspect the compressor for cracks, leaks, or signs of wear on the housing, hoses, and connections.

Inspect Belts and Pulleys: Ensure the compressor belt is not worn, cracked, or loose. Check the pulley for smooth rotation and proper alignment.

Look for Oil Stains: Oil stains around the compressor or A/C lines may indicate a refrigerant leak.

2. Electrical System Check

Test the Clutch:

Turn on the A/C system and observe if the compressor clutch engages (you should hear a click and see the clutch plate move).

If the clutch does not engage, check the power supply, fuses, relays, and wiring for faults.

Measure Voltage: Use a multimeter to check the voltage at the compressor clutch connector. It should match the vehicle’s system voltage (typically 12V).

Check Ground Connection: Ensure the compressor has a proper ground connection.

3. Pressure Testing

Connect Manifold Gauges: Attach a manifold gauge set to the high-pressure and low-pressure service ports on the A/C system.

Measure Pressure:

Start the engine and turn the A/C to the maximum cooling setting.

Compare the pressure readings (low-side and high-side) with the manufacturer’s specifications.

Abnormal pressure readings (too high or too low) may indicate a problem with the compressor or other components (e.g., clogged expansion valve, refrigerant overcharge, or undercharge).

Check for Pressure Balance: Turn off the engine and observe if the high-side and low-side pressures equalize. If they do not, the compressor’s internal valves may be faulty.

4. Performance Test

Cooling Efficiency: Run the A/C system and measure the temperature of the air coming from the vents. It should be significantly cooler than the ambient temperature (typically 8–15°C or 45–60°F at the vents).

Listen for Unusual Noises: Strange noises (e.g., grinding, rattling, or squealing) may indicate internal compressor damage or bearing failure.

Monitor Compressor Operation: Ensure the compressor cycles on and off at regular intervals. Continuous operation or failure to cycle may indicate a problem.

5. Leak Testing

Use a Refrigerant Leak Detector: Check for leaks around the compressor seals, hoses, and connections.

UV Dye Test: Add UV dye to the refrigerant and use a UV light to detect leaks.

Soap Solution Test: Apply a soapy water solution to connections and look for bubbles, which indicate leaks.

6. Compressor Oil Level Check

Inspect Oil Level: The compressor requires the correct amount of oil for lubrication. Too little oil can cause overheating, while too much oil can reduce cooling efficiency.

Check for Contamination: If the oil appears dirty or contains metal particles, the compressor may be damaged internally.

7. Belt and Pulley Test

Belt Tension: Ensure the belt driving the compressor is properly tensioned. A loose belt can cause slippage, while an overtightened belt can damage the compressor bearings.

Pulley Rotation: With the engine off, manually rotate the compressor pulley to check for smooth operation. Resistance or grinding noises may indicate bearing failure.

8. Advanced Diagnostics

Scan for Error Codes: Use an OBD-II scanner to check for any A/C-related error codes stored in the vehicle’s computer.

Check Refrigerant Levels: Use a refrigerant scale to ensure the system has the correct amount of refrigerant. Overcharging or undercharging can affect compressor performance.

Common Issues to Look For

Compressor Not Engaging: Could be due to low refrigerant, electrical faults, or a faulty clutch.

Poor Cooling Performance: May indicate a failing compressor, low refrigerant, or a clogged system.

Excessive Noise: Often caused by internal compressor damage or bearing failure.

Refrigerant Leaks: Commonly occur at seals, hoses, or connections.
