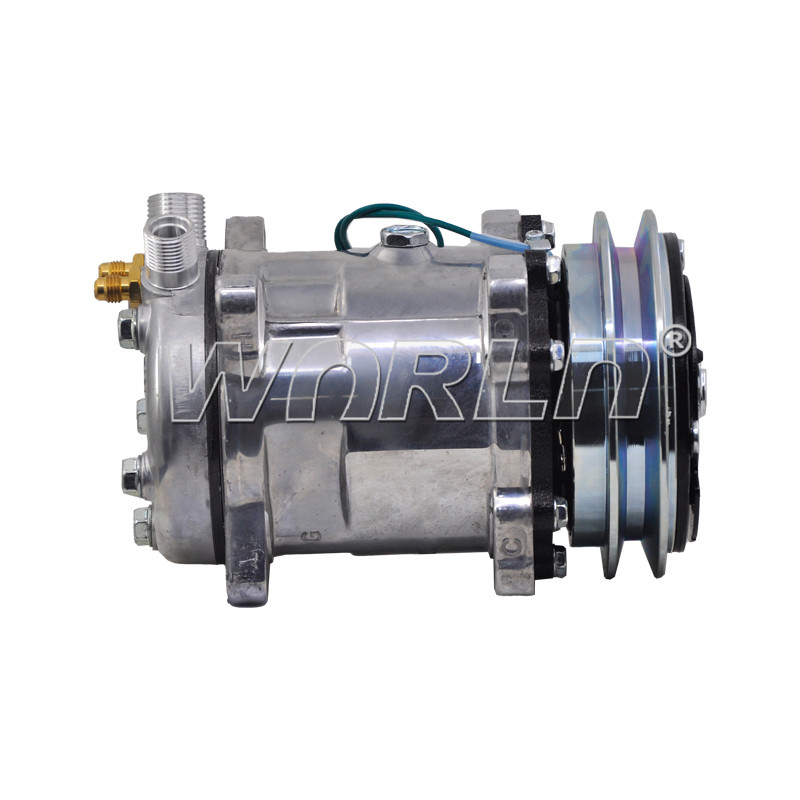

SD5H095077 Compressor Air Conditioner Car For 5H09 2A 12V WXUN147

SD5H095077 Compressor Air Conditioner Car For 5H09 2A 12V WXUN147

The automobile compressor is the core component of the air conditioning system. It is responsible for compressing the refrigerant into high-temperature and high-pressure gas and cooling the air in the car through circulation. When you turn on the air conditioning switch in your car, the compressor will be activated and start working. It obtains power from the engine through an electromagnetic clutch and drive belt, and circulates refrigerant to the evaporator and condenser for heat exchange. This process cools and dehumidifies the air inside the car, providing a comfortable driving environment. The effectiveness and normal operation of the vehicle's air conditioning largely depends on the working status of the compressor.

Parameter :

Goods Picture

Compressors and Mount & Drive:

Mount & Drive

Consists of a bracket to mount the compressor to the engine, a belt idler pulley, compressor drive belt and possibly and extra drive pulley for the crankshaft.

Compressor Mount

Manufactured of either plate, cast iron, steel or aluminium, this bracket should exhibit

excellent noise absorption qualities especially if using a piston type compressor.

Idler Pulley

A small pulley normally used in conjunction with a belt adjusting mechanism, also used when a belt has a long distance between pulleys to absorb belt vibrations.

Drive Pulley

Some vehicles do not have an extra pulley to accommodate an A/C drive belt, in these

cases an extra pulley is bolted onto the existing crankshaft pulley.

Need To Replace The Situation

Here are some additional symptoms that might indicate a faulty AC compressor requiring replacement:

1. Loud or unusual noises: If you hear grinding, squealing, or rattling noises coming from the AC compressor, it could indicate internal damage or worn-out components.

2. AC system not cooling: If warm air is blowing through the dash vents even when the AC system is turned on, it could mean that the compressor is not functioning properly. This could be due to a lack of refrigerant or internal damage.

3. Excessive vibration: Excessive vibrations while the AC system is running can be a sign of compressor issues. This could be caused by worn-out or damaged compressor components.

4. AC system repeatedly cycles on and off: If your AC system frequently turns on and off rapidly, it could indicate a faulty compressor. This is known as short cycling and could be caused by a refrigerant leak, a malfunctioning pressure switch, or a failing compressor.

5. Burning smell: If you notice a burning smell coming from your AC system, it could indicate that the compressor's motor or wiring is overheating.

6. Oil or refrigerant leaks: Leaking refrigerant or oil around the AC compressor can be a sign of a failing compressor that needs to be replaced.

7. High pressure or low-pressure readings: An experienced technician can diagnose a faulty compressor by measuring the pressure levels in the AC system. If the pressure readings are abnormal, it could be an indication that the compressor is malfunctioning.

If you are experiencing any of these symptoms, it is best to have a professional HVAC technician inspect and diagnose the issue. They will be able to determine if the AC compressor needs replacement or if there are other underlying problems that need to be addressed.
