977012M000 977012M100 Auto AC Compressor For Hyundai Genesis WXHY058

Product Description

977012M000 977012M100 Auto AC Compressor For Hyundai Genesis WXHY058



The automobile air conditioning compressor is the core component of the automobile air conditioning system. It achieves rapid cooling of the air in the car by compressing low-pressure cold gas into high-pressure and high-temperature gas. Our compressors have the advantages of efficient refrigeration capacity, low energy consumption, low noise and reliability, providing drivers with a comfortable driving experience. We are committed to providing customers with high-quality, high-performance automotive air conditioning compressors and contributing to the comfortable driving experience in the automotive industry.



Parameter :



Model Number	WXHY058
Car Model	For Hyundai Genesis2.0/3.8
Type	AC Compressor
Year Model	2008-2014
OE No.	977012M000/977012M100/158398
Note	If you need assistance to make sure that this part will fit your vehicle.Please send us the photo of your old product .The OEM and/or the year,make model and engine size of your vehicle so that we may confirm it for you.We also recommend using the compatibility chart in order to make sure that this product will fit your vehicle.

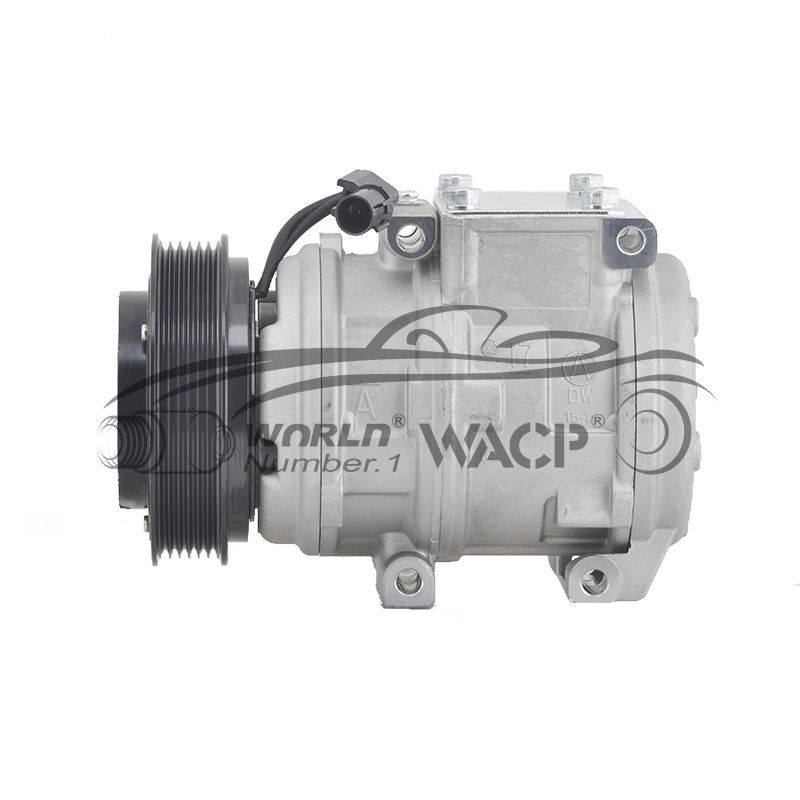

Goods Picture







General system



Each system may vary slightly per vehicle. For example, some may include an orifice tube whereas others have an expansion valve. This means the system has up to 7 components including:



1.Compressor: compresses cool refrigerant gas into hot refrigerant gas



2.Condenser and fan: converts hot refrigerant gas into a hot liquid at high pressur



3.Receiver Dryer: temporarily stores refrigerant when not needed by the system



4.Expansion (TX) Valve / Orifice Tube: regulates refrigerant flow / creates pressure drop



5.Evaporator: cools air before entering cabin



6.Heater Core: warms air before entering cabin (uses engine coolant rather than refrigerant)



7.Blower Motor: fans hot or cold air into the cabin











Piston-Type Compressors



The automotive air conditioning compressor is a crucial component of the AC system, responsible for compressing and circulating the refrigerant. It consists of several key parts that work together to achieve effective cooling.







1. Compressor Housing: The outer shell of the compressor, designed to enclose and protect the internal components.







2. Compressor Pulley: A pulley attached to the front of the compressor, connected to the engine via a belt. It transfers power from the engine to drive the compressor.







3. Clutch Assembly: The clutch allows the compressor to engage and disengage as required. It consists of an electromagnetic coil, friction plates, and a hub.







4. Swash Plate: This component converts the rotational motion of the compressor shaft into a reciprocating or up-and-down motion. It is responsible for compressing the refrigerant.







5. Piston: Linked to the swash plate, the piston moves up and down within the compressor cylinder to compress the refrigerant gas.







6. Reed Valves: These one-way valves control the flow of refrigerant into and out of the cylinder. They prevent backflow and ensure efficient compression.







7. Oil Separator: Located within the compressor housing, it separates the refrigerant oil from the refrigerant gas before it leaves the compressor.







8. Shaft Seal: This seal prevents refrigerant from leaking out and contaminants from entering the compressor. It ensures the integrity of the system.







9. Control Valve: Some compressors have a control valve that regulates the flow of refrigerant based on the cooling demands of the vehicle.







10. Mounting Brackets: These brackets secure the compressor to the engine or chassis, keeping it stable and in the correct position.





Each of these components plays a crucial role in the operation of the automotive air conditioning compressor. Their proper functioning ensures efficient cooling and overall performance of the AC system in vehicles.
