7813B173 Car Air Conditioner Compressor For TMitsubish Xpander Kaki3 WXMS085

Minimum Order Quantity : 3pcs Price : Negotiable
Packaging Details : Neutral packing and our own brand packing or customized packing according to your requirement. Delivery Time : 30 days
Payment Terms : Western Union, L/C, T/T, MoneyGram, PayPal Supply Ability : 5000pcs per month
Place of Origin: Guangdong, China Brand Name: WNRLN
Certification: SGS/IS09001 Model Number: WXMS085

Detail Information

Product Name: WXMS085 Type: Compressors
Car Make: For Mitsubish Xpander Kaki3 Voltage: 12V
Warranty: 1 Year Size: Standard Size
Groove: 5PK Compressor Type: 10SRE15C
Oe No.: 7813B173/4372307070/XI2474002250

Product Description

7813B173 Car Air Conditioner Compressor For TMitsubish Xpander Kaki3 WXMS085



The automobile air conditioning compressor is the core component of the automobile air conditioning system and plays a key role in driving the refrigeration cycle. It achieves rapid cooling of the air in the car by compressing low-pressure cold gas into high-pressure and high-temperature gas. A high-quality compressor provides efficient refrigeration capacity, which can reduce the temperature inside the car in a short time and provide a comfortable driving experience. At the same time, it must have the characteristics of low energy consumption, low noise and reliability to ensure the long-term stable operation of the air conditioning system. The performance of the automobile air conditioning compressor directly affects the working effect of the entire air conditioning system. Choosing a high-performance and reliable compressor will bring a more comfortable driving experience to the driver.The automobile air conditioning compressor is the core component of the automobile air conditioning system and plays a key role in driving the refrigeration cycle.




Parameter :



Model Number





WXMS085





Car Model





For Mitsubish Xpander Kaki3



Type





AC Compressor



Year Model





2018-2020



Compressor type





10SRE15C





OE NO.





7813B173/4372307070/XI2474002250



















Goods Picture

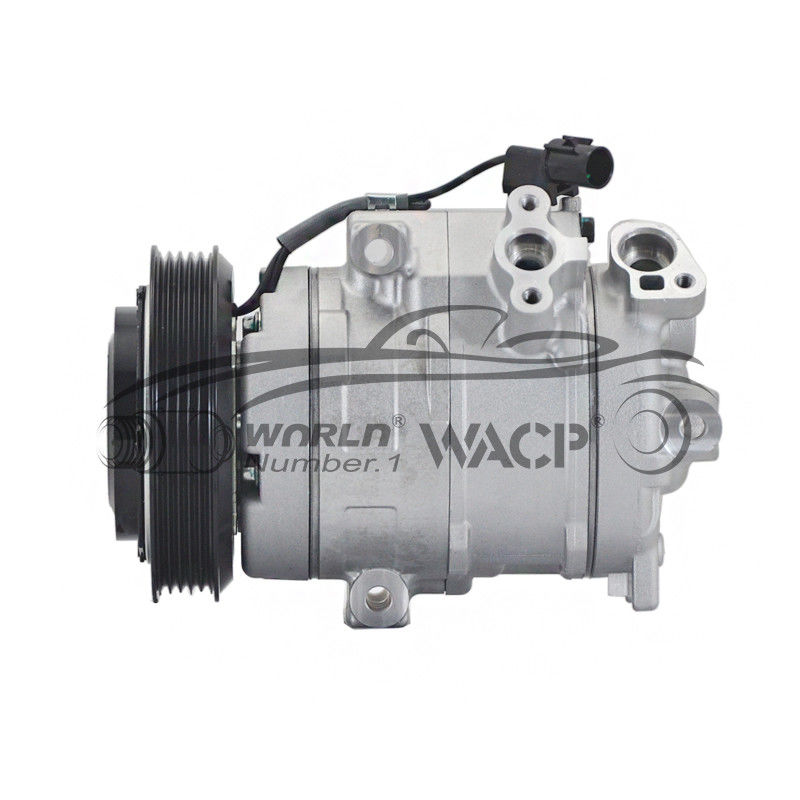

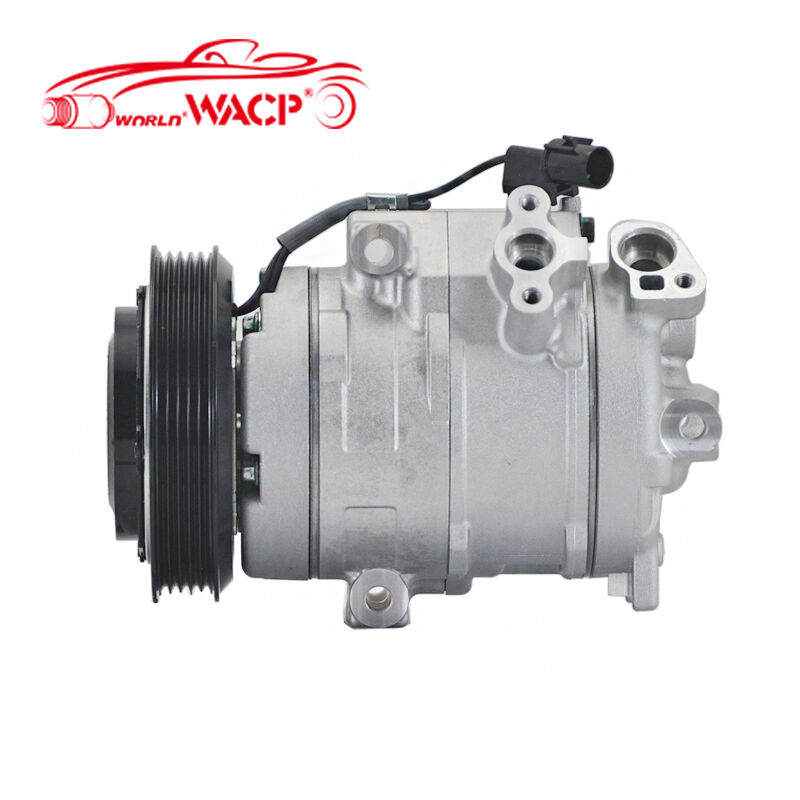

7813B173 Car Air Conditioner Compressor For TMitsubish Xpander Kaki3 WXMS085 07813B173 Car Air Conditioner Compressor For TMitsubish Xpander Kaki3 WXMS085 1



















4 steps to diagnose a car air conditioning compressor problem:



Step 1: Start the engine and turn on the A/C to the highest setting. This will activate the air conditioning compressor, which will draw refrigerant from the evaporator at low pressure, compress it, and send it to the condenser at high temperature and pressure.



Step 2: Listen for any unusual noises. Inspect the clamps, fixing points, hoses, and lines for breaks, cracks, missing nuts or bolts, and vibrations transmitted from the engine to the cabin. Check the belt, clamping device, tensioner pulleys, and clutch for wear, as they can cause unusual noises. If no obvious issues are found, consult a qualified technician to further diagnose the problem.



Step 3: Check for cool air coming from the air vents. Make sure the cooling fans operate when the air conditioner is on. Clean or replace the cabin air filter if necessary. Remove any debris, such as leaves, bugs, or dirt, that could obstruct airflow through the condenser.



Step 4: Inspect for visible leaks under the car. Look for any signs of refrigerant leakage, such as oily stains or puddles. If a leak is detected, it is recommended to seek professional assistance to properly diagnose and repair the issue.









Here are the most common causes of malfunctioning car A/C systems:



1. Insufficient refrigerant: This is often the main issue when the air blows hot. Low refrigerant levels are usually caused by a leak, which can be due to worn hoses or loose connections. You can refill the system with a recharge kit from an auto parts store. However, this approach has its drawbacks. It could lead to overcharging the system, affecting its performance, and it doesn't address the underlying leak causing the problem.



2.Defective compressor: If the compressor fails, the entire A/C system won't work. The compressor's clutch, which connects it to the pulley powering the system, can be the culprit in some cases. This is a relatively minor repair. In vehicles with belt-driven A/C units, the clutch allows you to turn the compressor on and off. (Note: Electric motor-driven A/C units in hybrids and EVs don't have a clutch.) Sometimes, the problem can be as simple as a blown fuse.



3.Faulty pressure switch: There are two pressure switches that monitor the refrigerant. If the pressure becomes too high or low, the compressor will shut off for safety reasons, resulting in a non-functional A/C system.



4.Damaged condenser: The condenser, located in front of the radiator, cools the A/C refrigerant. Debris striking it can cause clogs or damage. Aging and wear can also contribute to condenser failure. Typically, a car's A/C condenser needs replacement after about 10 years of regular use.



5. Malfunctioning condenser fan The condenser relies on a fan to cool the refrigerant in the A/C system. If the fan stops working, you may notice that the A/C doesn't cool the cabin as effectively at lower speeds. You might also hear unusual noises like banging or rattling, and the fan won't run when the car is parked.



6. Sensor malfunctions The climate control system in a vehicle relies on various sensors to accurately regulate the air temperature. If any of these sensors fail, it can affect the system's performance.



7. Blocked cabin air filter To keep dust, pollen, and other particles out of the cabin, a car's climate control system uses a filter. If this cabin air filter becomes clogged and is not regularly replaced, it can impact the cooling capabilities of the system.



8. Defective blend door actuator An air conditioning system has a blend door actuator that directs hot or cold air into the cabin. If you set the system for one temperature and get the opposite, it may be due to a malfunctioning actuator.



9. Faulty head unit If all other components of the system are functioning correctly, the central control unit (where the temperature controls are located) may be the issue. This could be caused by wiring problems or, in newer vehicles, a problem with the electronic signal that connects the computerized temperature controls to the mechanical A/C components under the hood.













Pack and Ship

7813B173 Car Air Conditioner Compressor For TMitsubish Xpander Kaki3 WXMS085 27813B173 Car Air Conditioner Compressor For TMitsubish Xpander Kaki3 WXMS085 37813B173 Car Air Conditioner Compressor For TMitsubish Xpander Kaki3 WXMS085 47813B173 Car Air Conditioner Compressor For TMitsubish Xpander Kaki3 WXMS085 5
