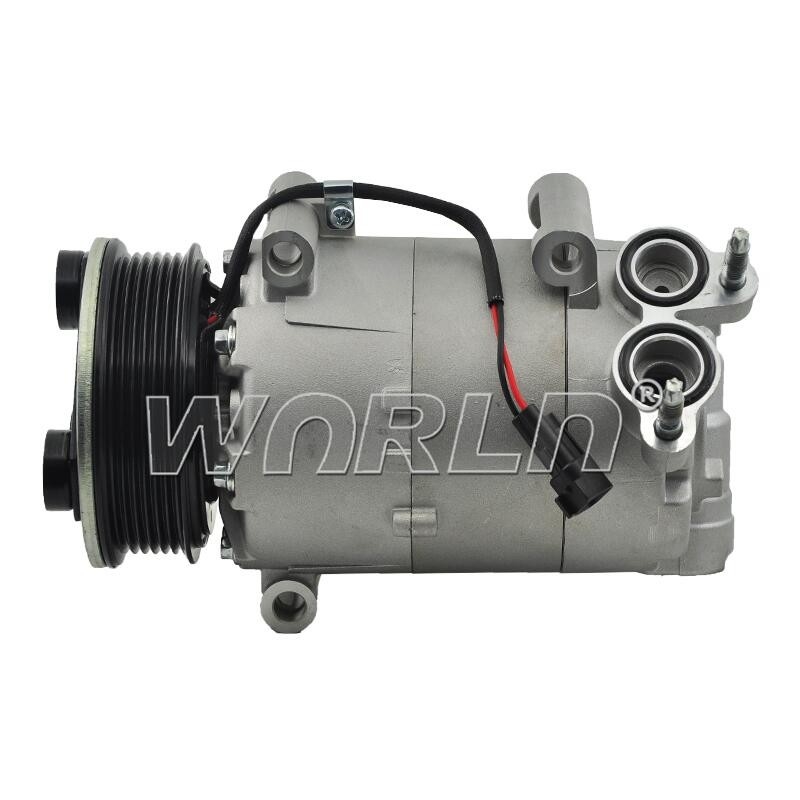

LR051045 Car Conditioner Compressor For RangeRover Evoque Jaguar 2.2 WXLR022

Product Description

LR051045 Car Conditioner Compressor For RangeRover Evoque For Jaguar 2.2 WXLR022

Considered to be the heart of your truck’s air conditioning system, the AC compressor is a pump that moves the refrigerant across the AC system. Since the AC compressor is part of the air conditioning system, many people think that it compresses cold air, but it actually puts the refrigerant under high pressure and the cooling is done by other components in the air conditioning system before cold air reaches the passenger cabin

Parameter:

Automobile air conditioning compressor composition

1. Compressor Housing: The compressor housing encloses all the internal components of the air conditioning compressor and provides support and protection.

2. Compressor Shaft Seal: The shaft seal prevents refrigerant and oil from leaking out of the compressor.

3. Swash Plate: The swash plate is connected to the compressor shaft and helps to regulate the movement of the pistons inside the compressor.

4. Piston Assembly: The piston assembly moves up and down within the cylinders of the compressor to compress the refrigerant gas.

5. Swash Plate Bearings: These bearings support the swash plate and allow it to rotate smoothly.

6. Cylinder Head: The cylinder head contains the reed valves and serves as the top cover of the compressor cylinders.

7. Reed Valves: Reed valves are located in the cylinder head and control the flow of refrigerant gas into and out of the compressor cylinders.

8. Suction and Discharge Ports: These ports enable the entry and exit of refrigerant gas into and out of the compressor cylinders.

9. Clutch Assembly: The clutch assembly engages and disengages the compressor from the engine, allowing the compressor to turn on and off as needed.

10. Electronic Control Module (ECM): The ECM monitors and controls the operation of the air conditioning compressor, ensuring optimal performance and efficiency.

Emergency situations

Some emergency indicators that something is wrong with your compressor include:

• Weird noises: This could be caused by a worn or broken belt/pulley. There are several other issues that may need to be addressed immediately.
• Burning smell: The compressor wiring may be damaged or burned.
• Leaking dashboard: It could be caused by a clogged hose or drain. Age and moisture can also cause your system to leak.

If you notice any of these issues, it's important to fix the problem as soon as possible.
