Air Conditioner Compressor For Universal Vehicles Standard Caterpillar WXUN062

Product Description

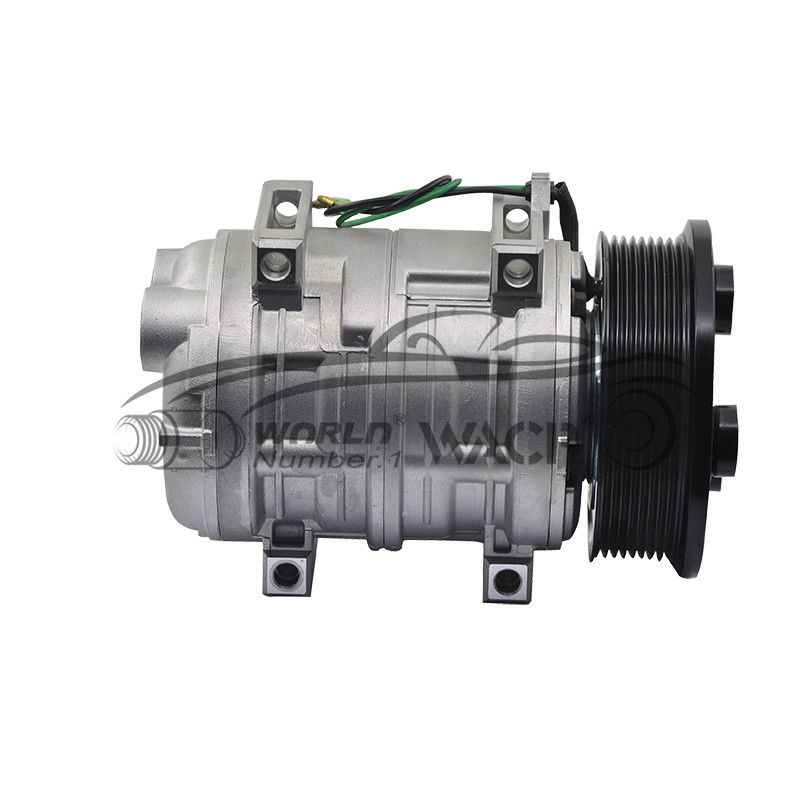

Air Conditioner Compressor For Universal Vehicles For Standard For Caterpillar WXUN062



Parameter:

Model Number	WXUN062
Car Model	For JohnDeere/Volvo/Komatsu/Timberjack/Bell 24V
Type	Ac Compressor
Year Model	N/A
Compressor type	TM21
OE NO.	N/A











Piston-Type Compressors





The automotive air conditioning compressor is a crucial component of the AC system, responsible for compressing and circulating the refrigerant. It consists of several key parts that work together to achieve effective cooling.





1. Compressor Housing: The outer shell of the compressor, designed to enclose and protect the internal components.







2. Compressor Pulley: A pulley attached to the front of the compressor, connected to the engine via a belt. It transfers power from the engine to drive the compressor.







3. Clutch Assembly: The clutch allows the compressor to engage and disengage as required. It consists of an electromagnetic coil, friction plates, and a hub.







4. Swash Plate: This component converts the rotational motion of the compressor shaft into a reciprocating or up-and-down motion. It is responsible for compressing the refrigerant.







5. Piston: Linked to the swash plate, the piston moves up and down within the compressor cylinder to compress the refrigerant gas.







6. Reed Valves: These one-way valves control the flow of refrigerant into and out of the cylinder. They prevent backflow and ensure efficient compression.







7. Oil Separator: Located within the compressor housing, it separates the refrigerant oil from the refrigerant gas before it leaves the compressor.







8. Shaft Seal: This seal prevents refrigerant from leaking out and contaminants from entering the compressor. It ensures the integrity of the system.







9. Control Valve: Some compressors have a control valve that regulates the flow of refrigerant based on the cooling demands of the vehicle.







10. Mounting Brackets: These brackets secure the compressor to the engine or chassis, keeping it stable and in the correct position.







Each of these components plays a crucial role in the operation of the automotive air conditioning compressor. Their proper functioning ensures efficient cooling and overall performance of the AC system in vehicles.









Compressor Clutch Issues





Compressor clutch issues can cause problems with the functioning of the AC compressor. The compressor clutch is connected to the engine by a belt and pulley and allows the compressor to cycle on and off as needed. This helps to reduce wear on the compressor and improve fuel economy by allowing the engine to disengage the compressor when cool air is not required.





However, there are issues that can arise with the compressor clutch. One potential problem is the failure of the clutch to disengage, causing the compressor to constantly run while driving. Conversely, the clutch may also fail to engage at all, resulting in no operation of the compressor. Both of these scenarios are undesirable.





While it is sometimes possible to repair the clutch, it is generally recommended to replace the entire compressor and clutch unit as a solution. This ensures optimal functioning and performance of the AC system.
